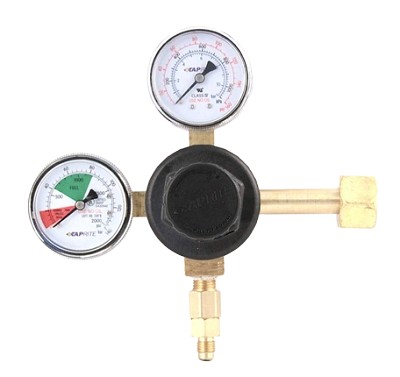

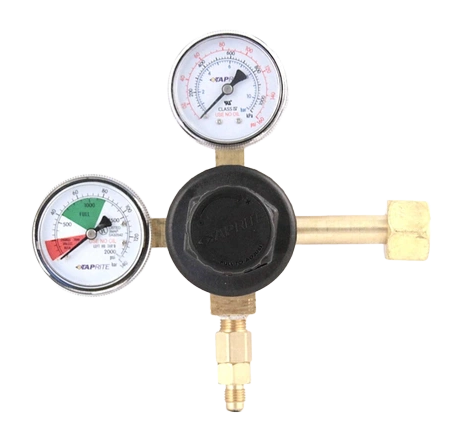

Taprite T5741PMHPBK-EN Primary Soda Co2 Regulator, 1P/1P, European, 30mm Euro Nut In, 1/4 Flare Out w/Ck, 160 & 2000 lb Gauges

The Taprite T5741PMHPBK-EN is a high-pressure, high-flow primary CO2 regulator manufactured by Taprite (Series 5740) with Euro nut. These heavy-duty co2 regulators are engineered primarily for commercial soda/soft drink dispensing and high-stress beverage carbonation applications.

• Polycarbonate bonnet will not chip, break or fade
• High CO₂ volumetric flow provides continuity in product dispensing
• Primary regulators connect directly to gas source
• Recommended  operating pressure be limited to 2/3 of the gauge range for maximum accuracy
• UL approved per UL252 class IV rating for CO₂
• Both Primary and Secondary regulators can accept CO₂ tank pressure
• 10 Micron filter built in to keep contaminants out of regulator
• Used primarily for Soda and Beer but can be used for other applications.
• One repair kit for primary and secondary

Features:
Series 5740 Primary Regulators (for direct cylinder mount) have a non-adjustable safety built into the body of the regulator where it cannot be removed or easily circumvented. In the event of a failure of the regulator seat, this safety will respond instantaneously protecting anything downstream from potentially dangerous high pressure. The maximum down stream pressure the system will see will not exceed 143 psig in accordance with NSDA guidelines.

Regulator:
Test Pressure	6600 psig (455.17bar. )
Maximum Inlet Pressure	3300 psig (227.59 bar. )
Operating Range	0-130 psig (0-8.97 bar. )
Temperature Range	-40F/+200F (-40C/+93C)
Safety	Preset 130 psig (8.97 bar. )
Mounting	Wall or Bottle
HP Ports	1/4" FPT = Left
LP Ports	1/4" FPT = Right
