Viqua VT1 Tap UV Water System 1gpm 3/8"-1/2" Combo NPT Female

Home > WATER FILTERS and SYSTEMS > Viqua UV Water Systems > Viqua VT1 Tap UV Water System 1gpm 3/8"-1/2" Combo NPT Female

| Questions about this item? Be the first to ask here.

Your Price: $265.51

Special Order

Part Number:VT1

Send to:

or add name:

*We'll ask for shipping info at checkout

Quantity

More Info
Customer Reviews

Viqua VT1 Tap UV Water System 1gpm 3/8"-1/2" Combo NPT Female

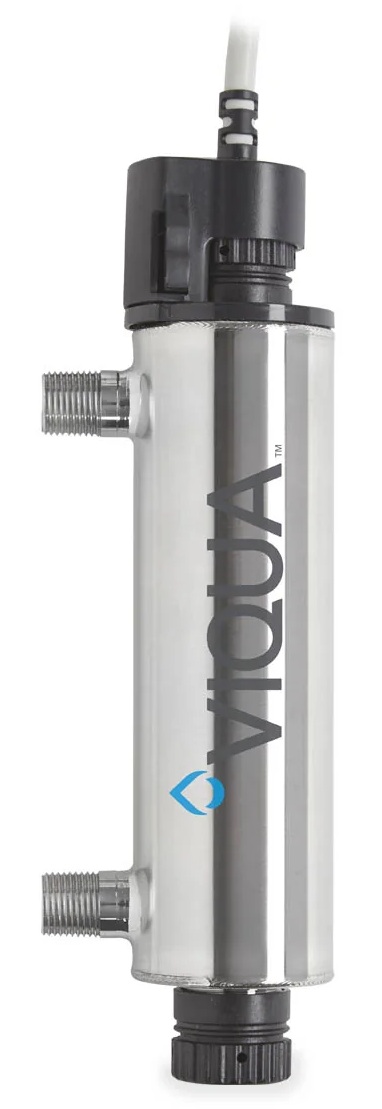

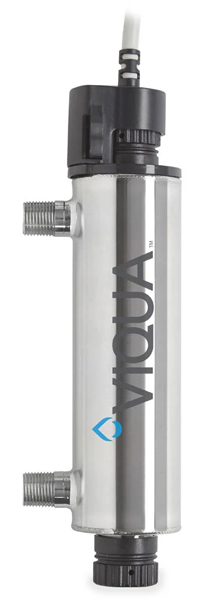

The Viqua VT1 is a compact, 1 GPM (Gallon Per Minute) ultraviolet (UV) water purification system designed for point-of-use disinfection. It provides an economical, chemical-free method to safeguard drinking water against microbiological threats by neutralizing 99.99% of bacteria, viruses, and protozoan cysts (such as E. coli, Cryptosporidium, and Giardia).

Key Technical Specifications

Flow Rate: 1 GPM at 30 mJ/cm² (drops to 0.7 GPM if a high-dose 40 mJ/cm² disinfection standard is required).
Chamber Dimensions: A compact 12.5" × 2.5" design constructed from durable 304 stainless steel.
Connection Sizes: Versatile combination plumbing ports featuring 3/8" FNPT and 1/2" MNPT threads.
Power Supply: A 13-watt auto-sensing controller featuring a visual LED "lamp on" and audible failure indicators.
Safety Lock: Built-in Safety-Loc™ connector cuts power automatically if the lamp is unlocked, preventing accidental UV exposure

Core Maintenance Requirements

UV Lamp Replacement: The Viqua S212RL Replacement Lamp must be replaced every 12 months (or 9,000 hours). Even if the light remains on, the gas inside degrades over time and loses its germicidal effectiveness
Quartz Sleeve Maintenance: Clean the Viqua QS-212 Quartz Sleeve regularly using a scale remover like vinegar or CLR to wipe off hard water film. Replace the sleeve completely every 2 years

Step-by-Step Installation Plan

Installing the system under a sink or at a low-flow tap requires specific preparation:

Pre-Filtration Setup: Crucial Requirement: You must install a 5-micron sediment filter directly before the UV system. If the water contains sediment, iron, or hardness, these elements will coat the quartz sleeve and block the UV light from treating the water.
Mounting Position: Mount the stainless steel chamber vertically with the lamp connector facing up. This prevents water droplets or condensation from tracking down the cord and damaging the electrical pins. If you must mount it horizontally, point the outlet port straight up to purge trapped air.
Controller Orientation: Mount the power controller horizontally beside or above the chamber. Create a drip loop in all electrical cords to prevent moisture from traveling toward the outlet.
Plumbing Integration: Tap into your cold water line, route the water through your sediment (and carbon) filters first, and then thread it into the UV inlet port.
System Sterilization: Do not skip this step. Before drinking from the tap, flush your downline pipes, faucets, and tanks with household bleach. The UV light only kills active pathogens passing through the chamber; it cannot clean downstream contamination already sitting in your faucet line.
Powering Up: Wear clean gloves to handle the UV lamp (avoiding skin oils on the glass). Slide the lamp inside the quartz sleeve, connect the plug until it clicks, turn the water line on to check for leaks, and plug in the power supply. Allow 60 seconds for the light to reach peak output before running the tap.

Frequently Asked Questions: VIQUA UV Water Systems

Q: Do I really need a pre-filter before my VIQUA UV system?

A: Yes, absolutely. UV light requires a direct "line of sight" to destroy bacteria. If there are tiny physical particles of sediment, dirt, or debris in your water, pathogens can literally hide behind them and survive. Installing a 5-micron sediment pre-filter immediately before your UV unit is required to ensure complete disinfection.

Q: The UV bulb is still lighting up after 12 months. Do I still need to replace it?

A: Yes. While the bulb may continue to emit visible blue light for up to a couple of years, the specialized UV-C gas inside the lamp degrades and becomes too weak to kill bacteria after 9,000 hours (roughly 12 months) of continuous operation. Failing to change the bulb annually risks your water safety.

Q: How often do I need to clean or replace the quartz sleeve?

A: You should inspect and clean the glass quartz sleeve (the tube protecting the bulb) every 3 to 6 months to remove mineral scaling or cloudiness. The glass must be perfectly transparent to let the UV light pass through. We recommend replacing the quartz sleeve entirely every 24 months to avoid hairline fractures or permanent mineral clouding.

Q: Can I turn the UV system off when I am not using it to save power?

A: No. VIQUA systems are designed to stay running 24/7. Turning the unit off allows untreated water to flow past the chamber or permits bacteria to breed inside the chamber while the system is cool. Additionally, turning the controller on and off frequently will shorten the life of the lamp and the ballasts.

Q: What happens if my home experiences a power surge or a brief outage?

A: The digital controllers inside VIQUA systems contain sensitive electronic circuit boards. Fluctuations in electricity can easily damage or fry them. We strictly recommend plugging your system into a **high-quality surge suppressor** to shield your electronics from damage.

Q: Does a UV system fix hard water or remove bad tastes and smells?

A: No. A UV system is strictly a biological purification system designed to kill bacteria and viruses. It does not filter out heavy metals, odors, chemicals, or hard minerals. For taste and odor issues, you should pair the system with a carbon block filter. For hard water, a water softener must be installed *before* the UV unit to prevent mineral buildup on the sleeve.
